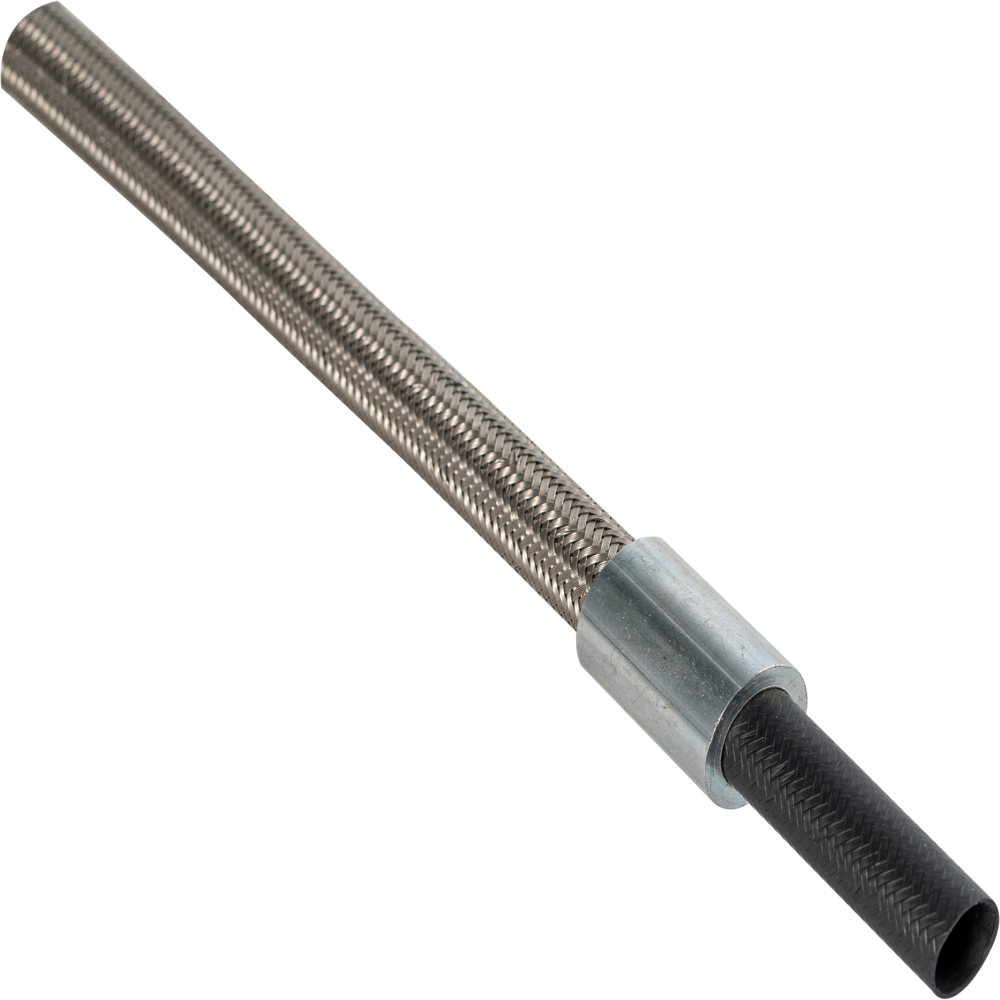

Antistatic PTFE Hose
600.0 INR/Meter
Product Details:
- Shape Round hose with straight construction
- Reinforcement Single or double stainless steel 304/316 wire braid
- Hardness Shore D 55-65
- Cover Braided Stainless Steel or Polypropylene
- Medium Suitable for chemicals, gases, fuels, steam, water, hydraulic oils
- Connection Type Crimped/Screwed Male/Female, Flanged, Camlock, Custom as required
- Material Antistatic PTFE (Polytetrafluoroethylene)
- Click to view more
X
Antistatic PTFE Hose Price And Quantity
- 500 Meter
- 600.0 INR/Meter
Antistatic PTFE Hose Product Specifications
- -70C to +260C
- Varies by reinforcement and size (contact for specification)
- Crimped/Screwed Male/Female, Flanged, Camlock, Custom as required
- Antistatic PTFE (Polytetrafluoroethylene)
- Shore D 55-65
- Single or double stainless steel 304/316 wire braid
- Round hose with straight construction
- 3 mm to 25 mm (custom sizes available)
- Suitable for chemicals, gases, fuels, steam, water, hydraulic oils
- Braided Stainless Steel or Polypropylene
- Up to 300 bar (varies by size and construction)
- Non-stick, chemical resistance, anti-static, flexible, temperature resistant
- Standard 1 to 10 meters, special cuts available
- Stainless Steel/Brass/Other alloy as required
- Natural (white) or black (antistatic)
- Depends on diameter and length-contact vendor for details
- <1 x 10^6 Ohm per meter (Antistatic)
- Meets SAE 100R14, FDA, ATEX, and GMP standards
- Suitable for corrosive, high-purity, and explosive zones
- Minimum 4x working pressure
Product Description
PTFE Hoses made from natural liners do not dissipate charge as the material in natural form is non conductor of electricity. A special compound is formulated to make the hose conductive. Conductive hoses prevent build up of static charge and thereby reduce the chances of a pin hole caused by a high static charge or in extreme situation explosion of the media is explosive. Advanced Fluro specializes in manufacturing conductive PTFE Braided Hoses.Exceptional Chemical and Temperature Resistance
Engineered from antistatic PTFE material, this hose resists a vast array of chemicals and withstands temperatures from -70C to +260C. Its non-stick, anti-static construction makes it ideal for handling aggressive or hazardous media in high-purity, explosive, or sterile conditions.
Flexible Design, Robust Construction
With diameters ranging from 3 mm to 25 mm and options for single or double stainless steel braiding, the hose delivers both flexibility and strength. The external cover can be braided stainless steel or polypropylene, tailored for the application. Custom cuts and fittings ensure compatibility with diverse setups.
Safety-Compliant for Critical Environments
Meeting industry-leading standards-SAE 100R14, FDA, ATEX, and GMP-this hose is safe for use in pharmaceutical, chemical, and explosive atmospheres. Its electrical resistance of less than 1 x 10^6 Ohm/m makes it suitable for static-sensitive operations, minimizing ignition or contamination risks.
FAQ's of Antistatic PTFE Hose:
Q: How does the antistatic PTFE hose help prevent static buildup in sensitive environments?
A: The black antistatic PTFE hose features low electrical resistance (<1 x 10^6 Ohm per meter), effectively dissipating static charges and reducing the risk of sparks or ignition, especially important in explosive or flammable zones.Q: What customization options are available for length, diameter, and end fittings?
A: Standard hose lengths range from 1 to 10 meters, but special cuts and custom diameters (from 3 mm to 25 mm) are available upon request. End fittings can be crimped, screwed, flanged, camlock, or custom-designed in stainless steel, brass, or other alloys as required.Q: When should I use the antistatic PTFE hose over standard PTFE hoses?
A: Use the antistatic version when handling flammable, explosive, or electronically sensitive materials where static discharge poses a hazard. It's also suitable for processes requiring compliance with strict safety or purity regulations.Q: What industries or environments are best suited for this PTFE hose?
A: This hose is ideal for chemical, pharmaceutical, food processing, and petrochemical industries, particularly wherever corrosive, high-purity, or hazardous media are transported in environments that demand compliance with FDA, ATEX, SAE, or GMP standards.Q: How can I ensure the hose meets my pressure and temperature requirements?
A: The hose is rated for an operating temperature range of -70C to +260C and pressures up to 300 bar (depending on size and construction). Always confirm your application's specific requirements with the vendor, including diameter, reinforcement, and end fitting.Q: What is the process for ordering hoses with customized specifications?
A: Contact the supplier with your required inside/outside diameter, length, end fitting type, and any special certifications or construction specifics. They can provide tailored solutions and detailed specifications based on your application's demands.Q: What benefits does the antistatic PTFE hose provide over traditional hose materials?
A: Compared to conventional hoses, PTFE hoses offer non-stick surfaces, superior chemical and thermal resistance, flexibility, and anti-static properties, ensuring safer operation, reduced contamination, and longer lifespan in demanding applications.Tell us about your requirement
